| Range of Product | Valve Positioners |
|---|---|

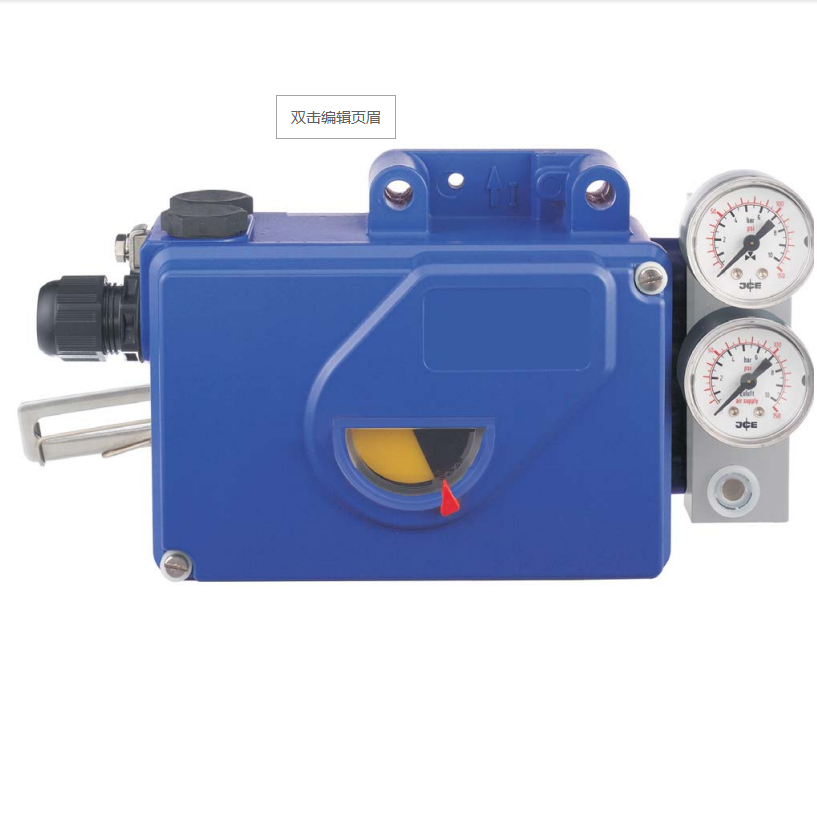

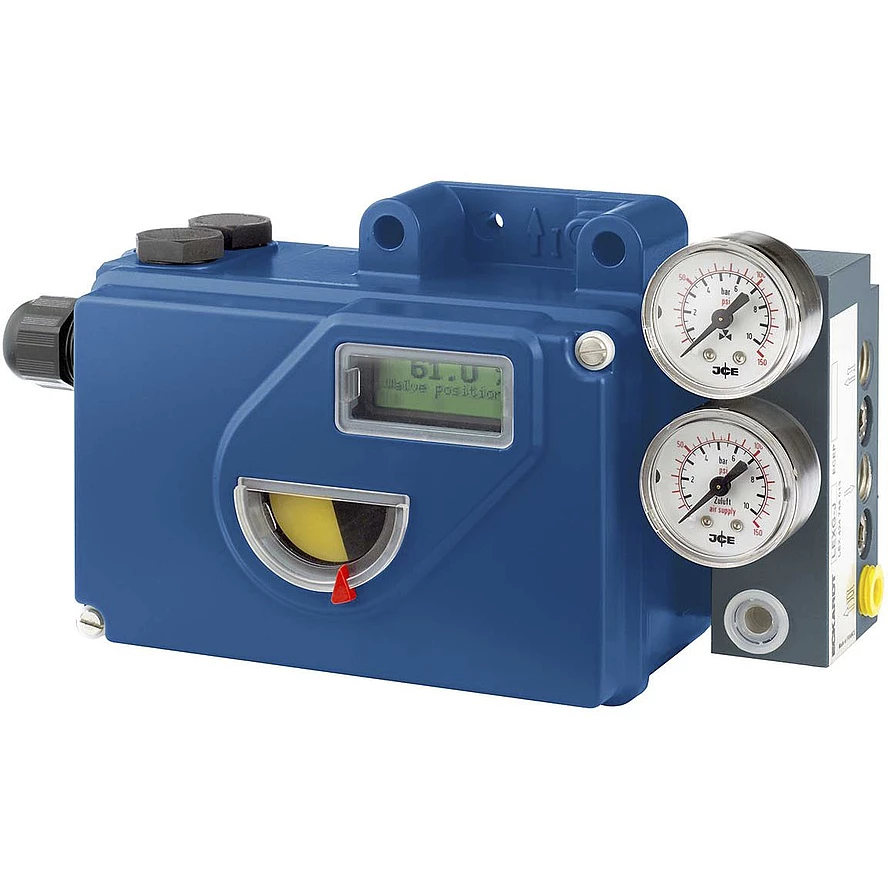

| Product or Component Type | Valve positioner |
| Communication port protocol | HART, 4...20 mA Profibus FOUNDATION fieldbus |
| Market Segment | Process industry |
| Housing material | Aluminium alloy |
|---|---|
| Pneumatic connection type | 0.25 inch 18 NPT G 1/4 |
| Network and machine diagnosis type | Valve predictive maintenance Valve footprint On-line friction |
| Input pressure | 1.4...6 bar |
| Maximum pressure | 6 bar 90 psi |
| Stroke range | 8...260 mm |
| Maximum hysteresis | 0.3 % |
| Linearity | < 0.4 % of the travel span |
| Pneumatic operation | Single acting Double acting |
| Operating angle | 0…95 ° |
