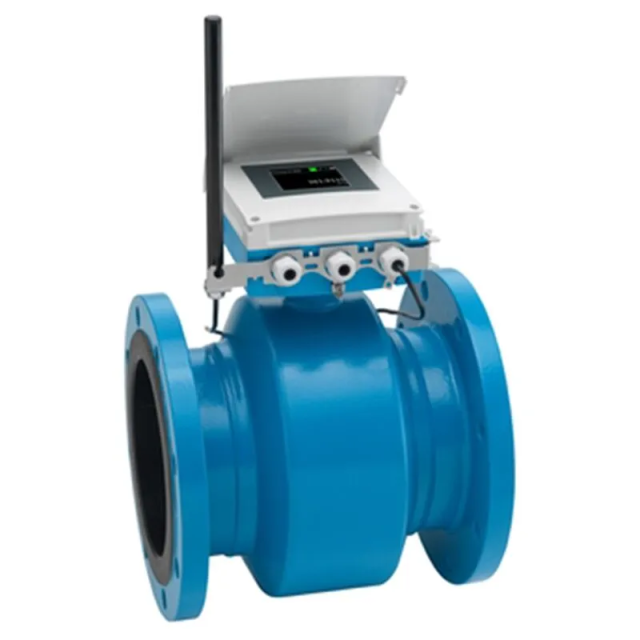

Endress+Hauser Proline Promag W 800 electromagnetic flowmeter

Max. measurement error

Volume flow: ±0.5 % o.r. ± 2 mm/s (±0.5 % o.r. ± 0.08 in/s)

Measuring range

9 dm³/min to 22500 m³/h (2.5 to 100000 gal/min)

Medium temperature range

Liner material hard rubber: 0 to +70 °C (+32 to +158 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
Liner material PTFE: -20 to 70°C (–4 to +158 °F)

Max. process pressure

PN 40, Class 300, 20K

Wetted materials

Liner: polyurethane; PTFE; hard rubber
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022)
