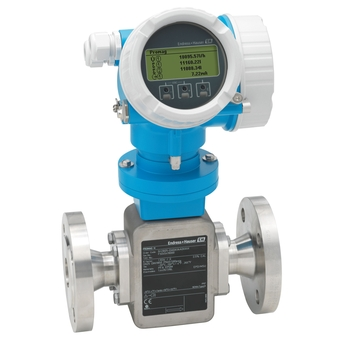

Endress+Hauser Proline Promag H 200 electromagnetic flowmeter

Max. measurement error

Volume flow: ±0.5 % o.r. ± 2 mm/s (0.08 in/s)

Measuring range

0.06 dm³/min to 300 m³/h (0.015 to 80 gal/min)

Medium temperature range

–20 to +150 °C (–4 to +302 °F)

Max. process pressure

PN 40, Class 150, 20K

Wetted materials

Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum
