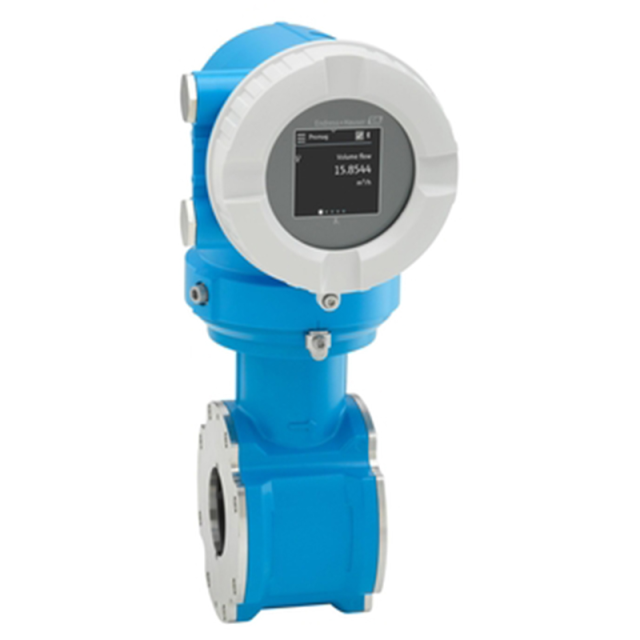

Endress+Hauser Proline Promag D 10 electromagnetic flowmeter

Max. measurement error

Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)

Measuring range

9 dm³/min to 282 m³/h (2.5 gal/min to 1250 gal/min)

Medium temperature range

Liner material polyamide: 0 to +60°C (+32 to +140°F)

Max. process pressure

PN 16, Class 150, 10K

Wetted materials

Liner material polyamide: 0 to +60°C (+32 to +140°F)
Electrodes: 1.4435 (316L)
